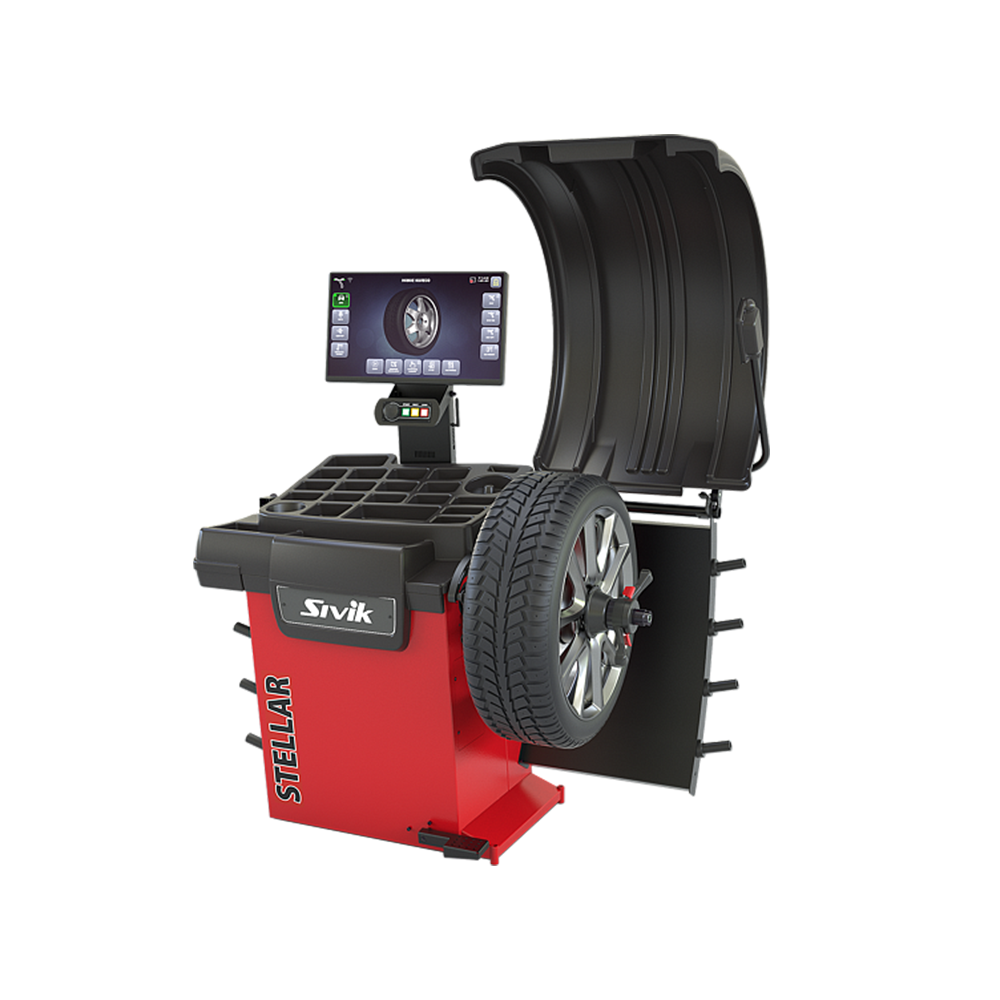

The new generation of a cost effective high-speed balancing machine for high-load tire shops

01.

Ideal for balancing large wheels

02.

Manual locking system

03.

Ultrasonic sensor or electronic gauge for the wheel third dimension input

04.

New convenient and user-friendly interface

05.

A high-resolution monitor, and a special membrane keyboard for manual input of required data and machine control

Imbalance resolution

0.025 oz

Monitor

LED high-resolution monitor

Shaft

40 mm

Wheel clamping

Quick Nut

Max. rim diameter

30''

Max. rim width

20''

Max. wheel diameter

36''

Placement accuracy

± 0.35°

Max. wheel weight

155 lbs

Dimensions (W/D/H)

53''/47''/73''

Power source

115 VAC Single-Phase 50/60 Hz

Air supply requirements

NA

Weight (Net/Gross)

342/441 lbs

Volume

55 ft3

Direct3D - Accurate direct measurement of the ALU-disk geometry and positioning of the stick-on weight with the electronic ruler

S-Drive - Automatic wheel turn and hold in the position of correction weight placement

AutoALU - Automatic imbalance correction program determination

NoTouch - Wheel balancing procedure with no buttons touched

RimRunout - Wheel runout measurement determinates the possible on-rim hazards for subsequent wheel use and evaluates whether rim replacement or repair is necessary. Comparison of rim geometry before and after repair

LaserLne - Laser six o'clock line indication for accurate placement of  correction weight; Guaranteed in one cycle alloy wheel imbalance elimination

High-resolution monitor, and a special membrane keyboard for manual input of required data and machine control

Split - behind spokes stick-on placement

Balanced wheels counter

Correction weights usage stats

Detailed statistics with the feature of onto flash card saving

Three user profiles

Tire-rim mutual position optimization

Adapter imbalance compensation

Electronic wheel distance / diameter and width gauges

Automated steel rim width measuring with ultrasonic sensor *PLUS version

Electric / or manual wheel clamping system

High precision spindle assembly, shaft diameter 40 mm

The unique hood design allows using the balancer next to the wall

LED Backlight

Extended functional tabletop corrective weights and tools storage

High-resolution monitor, and a special membrane keyboard
